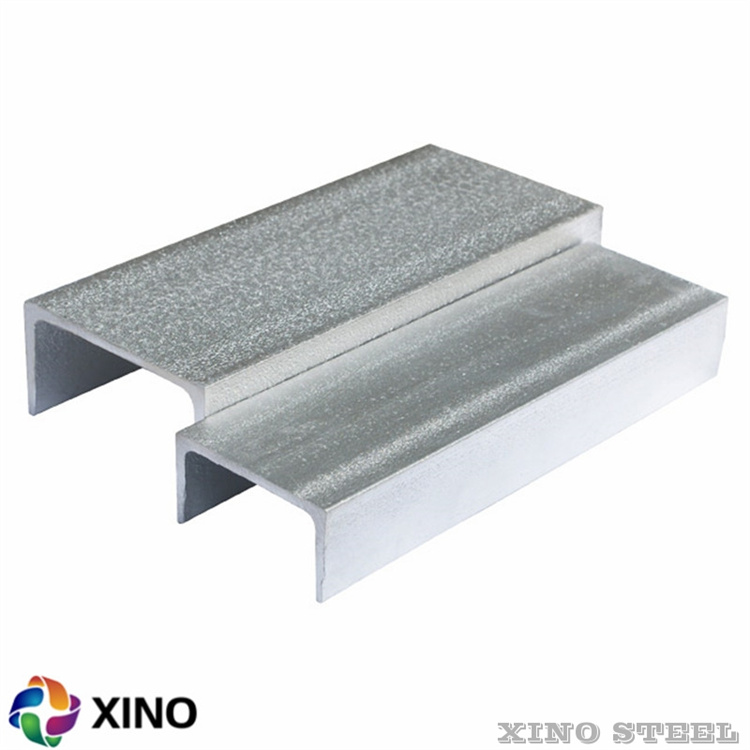

This photo shows our stock of galvanized steel UPN
UPN (UNP) EUROPEAN STANDARD U CHANNELS FLANGE SLOPE, UPN STEEL PROFILE SPECIFICATIONS, DIMENSIONS, PROPERTIES. DIN 1026-1:2000
Current table represents European standard U (UPN, UNP) channels, UPN steel profile (UPN beam), specifications, properties, dimensions. Manufactured according to standards :
DIN 1026-1: 2000, NF A 45-202: 1986
EN 10279: 2000 (Tolerances)
EN 10163-3: 2004, class C, subclass 1 (Surface condition)
STN 42 5550
ČTN 42 5550
TDP: STN 42 0135
UPE EUROPEAN STANDARD U CHANNELS (U PROFILE) WITH PARALLEL FLANGES. UPE STEEL BEAM SPECIFICATIONS, DIMENSIONS, PROPERTIES
Current table represents European standard U (UPE) channels with parallel flanges, UPE steel profile (UPE beams), specifications, properties, dimensions. Manufactured according to standards :
DIN 1026-2: 2002-10
EN 10279: 2000 (Tolerances)
EN 10163-3: 2004, class C, subclass 1 (Surface condition)
STN 42 5550
ČTN 42 5550
TDP: STN 42 01
828961.png "U-Profiles-UPE-UPN-U-Beam-UE-CHANNEL(6)828961.png")
UPN (UNP) European standard U channels, UPN steel profile specifications, dimensions, properties
Identification | Nominal weight 1m | Nominal dimensions | Dimensions for detailing | Cross-section | Surface | |||||||||
G | h | b | s | t | R | h 1 | d | Ø | e min | e max | A | A L | A G | |
kg/m | mm | mm | mm | mm | mm | mm | mm | mm | mm | cm2 | m2/m | m2/m | ||
| UPE 80 | 7,90 | 80 | 50 | 4,0 | 7,0 | 10 | 66 | 46 | - | - | 10,1 | 0,343 | 43,45 | |
| UPE 100 | 9,82 | 100 | 55 | 4,5 | 7,5 | 10 | 85 | 65 | M12 | 35 | 36 | 12,5 | 0,402 | 41,00 |
| UPE 120 | 12,1 | 120 | 60 | 5,0 | 8,0 | 12 | 104 | 80 | M12 | 35 | 41 | 15,4 | 0,460 | 37,98 |
| UPE 140 | 14,5 | 140 | 65 | 5,0 | 9,0 | 12 | 122 | 98 | M16 | 35 | 38 | 18,4 | 0,520 | 35,95 |
| UPE 160 | 17,0 | 160 | 70 | 5,5 | 9,5 | 12 | 141 | 117 | M16 | 36 | 43 | 21,7 | 0,579 | 34,01 |
| UPE 180 | 19,7 | 180 | 75 | 5,5 | 10,5 | 12 | 159 | 135 | M16 | 36 | 48 | 25,1 | 0,639 | 32,40 |
| UPE 200 | 22,8 | 200 | 80 | 6,0 | 11,0 | 13 | 178 | 152 | M20 | 46 | 47 | 29,0 | 0,697 | 30,60 |
| UPE 220 | 26,6 | 220 | 85 | 6,5 | 12,0 | 13 | 196 | 170 | M22 | 47 | 49 | 33,9 | 0,756 | 28,43 |
| UPE 240 | 30,2 | 240 | 90 | 7,0 | 12,5 | 15 | 215 | 185 | M24 | 47 | 51 | 38,5 | 0,813 | 26,89 |
| UPE 270 | 35,2 | 270 | 95 | 7,5 | 13,5 | 15 | 243 | 213 | M27 | 48 | 50 | 44,8 | 0,892 | 25,34 |
| UPE 300 | 44,4 | 300 | 100 | 9,5 | 15,0 | 15 | 270 | 240 | M27 | 50 | 55 | 56,6 | 0,968 | 21,78 |
| UPE 330 | 53,2 | 330 | 105 | 11,0 | 16,0 | 18 | 298 | 262 | M27 | 54 | 60 | 67,8 | 1,043 | 19,60 |
| UPE 360 | 61,2 | 360 | 110 | 12,0 | 17,0 | 18 | 326 | 290 | M27 | 55 | 65 | 77,9 | 1,121 | 18,32 |
| UPE 400 | 72,2 | 400 | 115 | 13,5 | 18,0 | 18 | 364 | 328 | M27 | 57 | 70 | 91,9 | 1,218 | 16,87 |
