Product Description
EN 10216-1 P235 TR2 SEAMLESS STEEL TUBE
EN 10216-1 P235 TR2 seamless steel tube are used for high temperature service applications.Seamless Alloy Steel Pipes according to EN 10253-2 Grade P235 are reheated and furnished in full annlealed,isothermal annealed or normalised quenched and tempered condition .EN 10253-2 Grade P235 Alloy Steel Seamless Pipes have a typical chemistry with additions of max 0.30 Chromium and max 0.08 Molybdenum.Bearing minimum tensile strength of 360 Mpa and maximum tensile strength 500 Mpa, EN 10253-2 Grade P235 Pipes have a minimum yield strength of 235 Mpa.
Specification of P235 TR2 SEAMLESS STEEL TUBE
| Steel grades | CHEMICAL COMPOSITION (LADLE ANALYSIS) | |||||||||||||
| C% max | Si% max | Mn% max | P% max | S% max | Cr% max | Mo% max | Ni% max | Al. cał% min | Cu% max | Nb% max | Ti% max | V% max | Cr + Cu+ Mo +Ni % MAX | |
| P195TR1 | 0,13 | 0,35 | 0,70 | 0,025 | 0,020 | 0,030 | 0,08 | 0,030 | - | 0,030 | 0,010 | 0,04 | 0,02 | 0,70 |
| P195TR2 | 0,13 | 0,35 | 0,70 | 0,025 | 0,020 | 0,030 | 0,08 | 0,030 | 0,02 | 0,030 | 0,010 | 0,04 | 0,02 | 0,70 |
| P235TR1 | 0,16 | 0,35 | 1,20 | 0,025 | 0,020 | 0,030 | 0,08 | 0,030 | - | 0,030 | 0,010 | 0,04 | 0,02 | 0,70 |
| P235TR2 | 0,16 | 0,35 | 1,20 | 0,025 | 0,020 | 0,030 | 0,08 | 0,030 | 0,02 | 0,030 | 0,010 | 0,04 | 0,02 | 0,70 |
| P265TR1 | 0,20 | 0,40 | 1,40 | 0,025 | 0,020 | 0,030 | 0,08 | 0,030 | - | 0,030 | 0,010 | 0,04 | 0,02 | 0,70 |
| P265TR2 | 0,20 | 0,40 | 1,40 | 0,025 | 0,020 | 0,030 | 0,08 | 0,030 | 0,02 | 0,030 | 0,010 | 0,04 | 0,02 | 0,7 |
| Grade | C | Si | Mn | P | S | Cr | Mo | Cu | Ni |
| P195 | ≤0.13 | ≤0.35 | ≤0.70 | ≤0.025 | ≤0.020 | ≤0.030 | ≤0.08 | ≤0.30 | ≤0.30 |
| P235 | ≤0.16 | ≤0.35 | ≤1.20 | ≤0.025 | ≤0.020 | ≤0.030 | ≤0.08 | ≤0.30 | ≤0.30 |
| P265 | ≤0.20 | ≤0.40 | ≤1.40 | ≤0.025 | ≤0.020 | ≤0.030 | ≤0.08 | ≤0.30 | ≤0.30 |
EN 10216 Seamless Steel Tubes Mechanical Properties
| Pipe types | Steel grades | Mechanical properties | Resilience | |||||||||
| Upper yield limit Re min for wall thickness T mm | Tensile strength Rm | Elongation A min | Minimum energy average absorbed KV J at the temperature of 0°C | |||||||||
| T<=16 | 16<T<=40 | 40<T<=60 | 1 | t | ||||||||
| MPa | MPa | MPa | MPa | 1 | t | 0 | -10 | 0 | ||||
| Line pipes P195TR1, P195TR2, P235TR1, P235TR2, P265TR1, P265TR2 | P195TR1 | 195 | 185 | 175 | 320-440 | 27 | 25 | - | - | - | ||
| P195TR2 | 195 | 185 | 175 | 320-440 | 27 | 25 | 40 | 28 | 27 | |||
| P235TR1 | 235 | 225 | 215 | 360-500 | 25 | 23 | - | - | - | |||
| P235TR2 | 235 | 225 | 215 | 360-500 | 25 | 23 | 40 | 28 | 27 | |||
| P265TR1 | 265 | 255 | 245 | 410-570 | 21 | 19 | - | - | - | |||
| P265TR2 | 265 | 255 | 245 | 410-570 | 21 | 19 | 40 | 28 | 27 | |||
| Grade | Yield Strength (Mpa) | Tensile Strength (Mpa) | Elongation(%)L | Elongation (%)T |
| P195 | ≥195 | 320-440 | 27 | 25 |
| P235 | ≥235 | 360-500 | 25 | 23 |
| P265 | ≥265 | 410-570 | 21 | 19 |
Material P235TR2 is the commonly used alloy material in the EN10216 standard used for a high-pressure system, supplier with the heat treatment is a mainly normalizing condition which is common material in the boiler system. XINO STEEL provided P235 TR1, R235 TR2, P235 GH steel seamless tube for boiler and economizer, superheater and reheater syetem in various sizes and specifications. If you want to know the price of seamless steel tube, pls contact with us, my email is zed@xinosteel.com.
Xino Steel is one of the most trusted steel pipe stockists and manufacturers located in China. We are committed to always provide the best products and services for our customers at competitive prices.

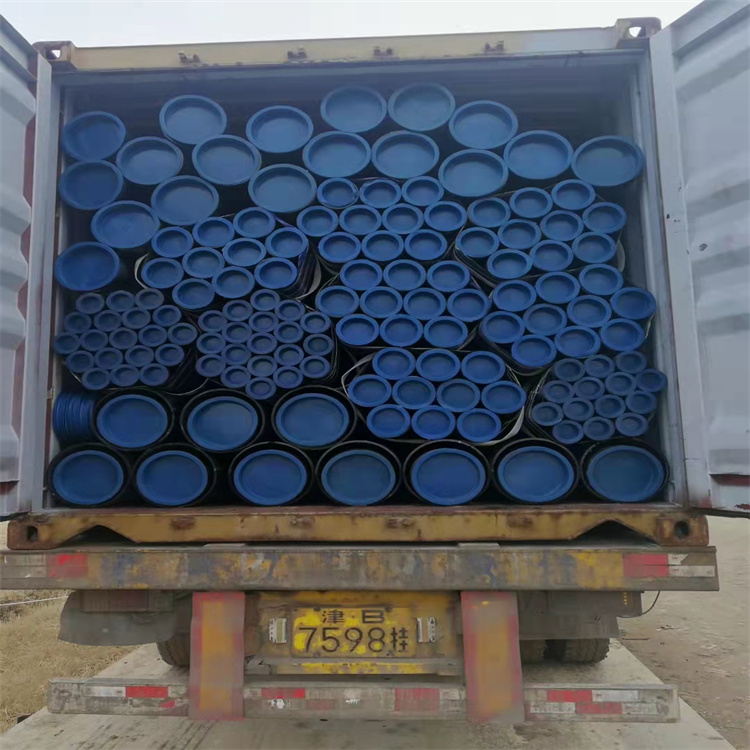

P235 TR2 SEAMLESS STEEL TUBE Packing:
Bundles,seaworthy wooden cases,with or without edge protector, steel hoop and seals or as per customers' requirements
